ZOLO Z-CLIMB™ ACF100 has the same methodology and features with Z-CLIMB™ ACF50/80 system. Compare with ACF50/80 system, ZOLO Z-CLIMB™ ACF100 is designed to meet the increased requirements such as greater impacts, extra working platforms or live loads with 10 t lifting capacity per parallel lifting bracket. ( Z-CLIMB™ ACF50/80 has 5 t/8t lifting capacity per parallel lifting bracket)
ZOLO Z-CLIMB™ ACF100 has the same methodology and features with Z-CLIMB™ ACF50/80 system. Compare with ACF50/80 system, ZOLO Z-CLIMB™ ACF100 is designed to meet the increased requirements such as greater impacts, extra working platforms or live loads with 10 t lifting capacity per parallel lifting bracket. ( Z-CLIMB™ ACF50/80 has 5 t/8t lifting capacity per parallel lifting bracket)

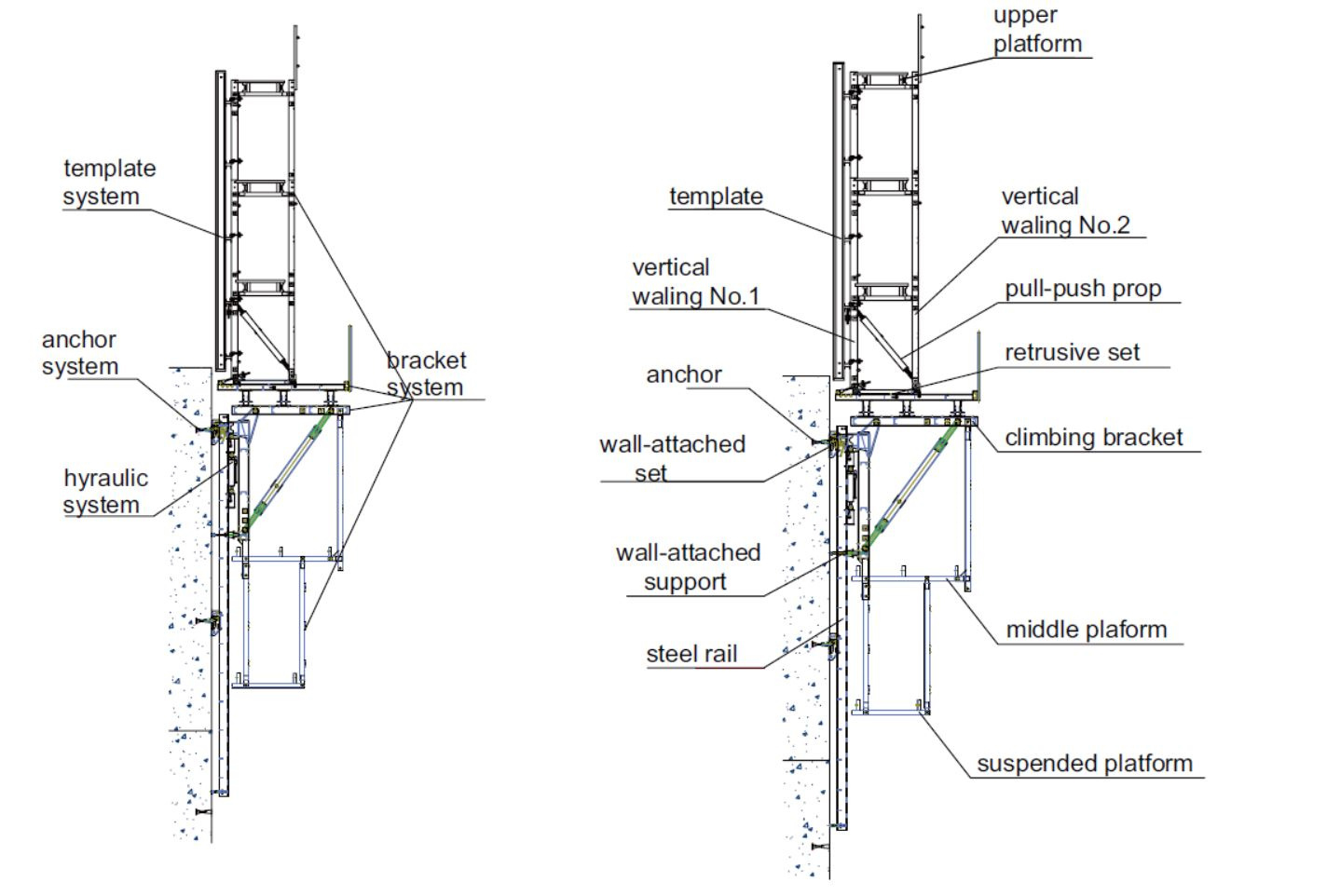

ZOLO Z-CLIMB™ ACF100 power source is its own hydraulic system, the hydraulic system consists of hydraulic station, hydraulic cylinder and oil pipe, etc. Through the hydraulic system, it can make Z-CLIMB™ ACF50/80 formwork frame body and the guide rail to mutual climbing, so as to make the formwork system climb upward steadily.
In the construction process, ZOLO Z-CLIMB™ ACF100 climbing formwork works without other lifting equipment, it is easy to be operated with rapid climbing speed and high safety factor.

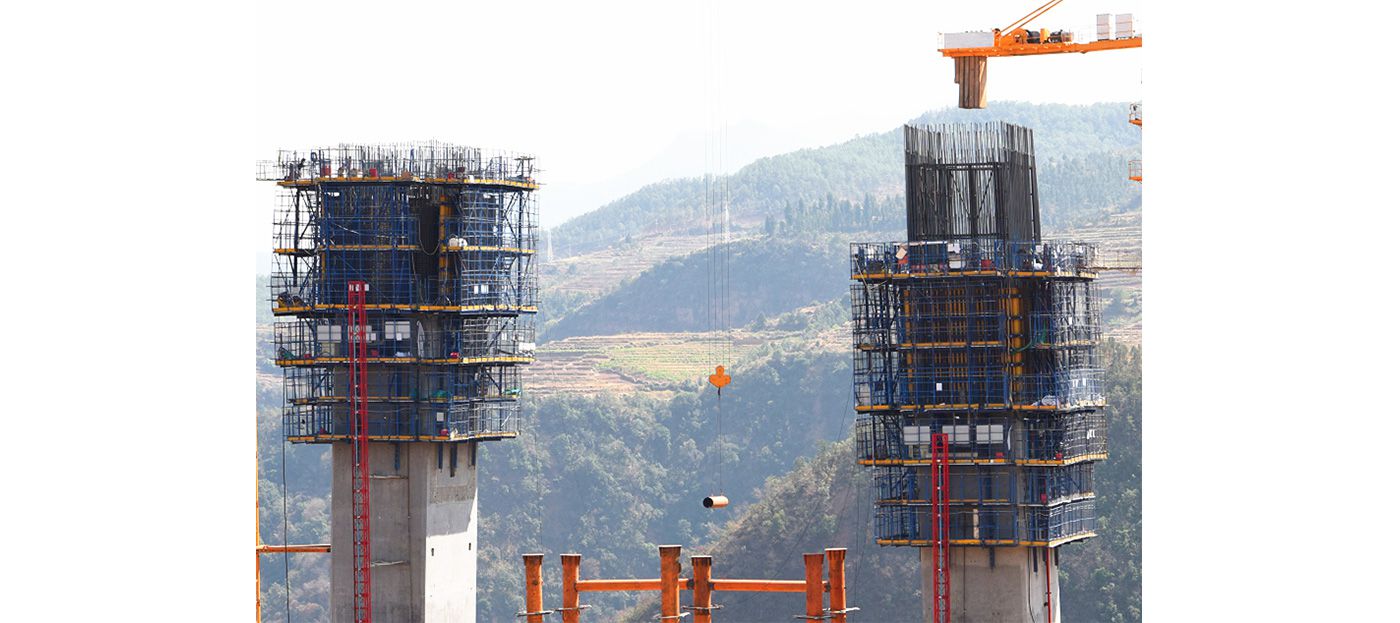

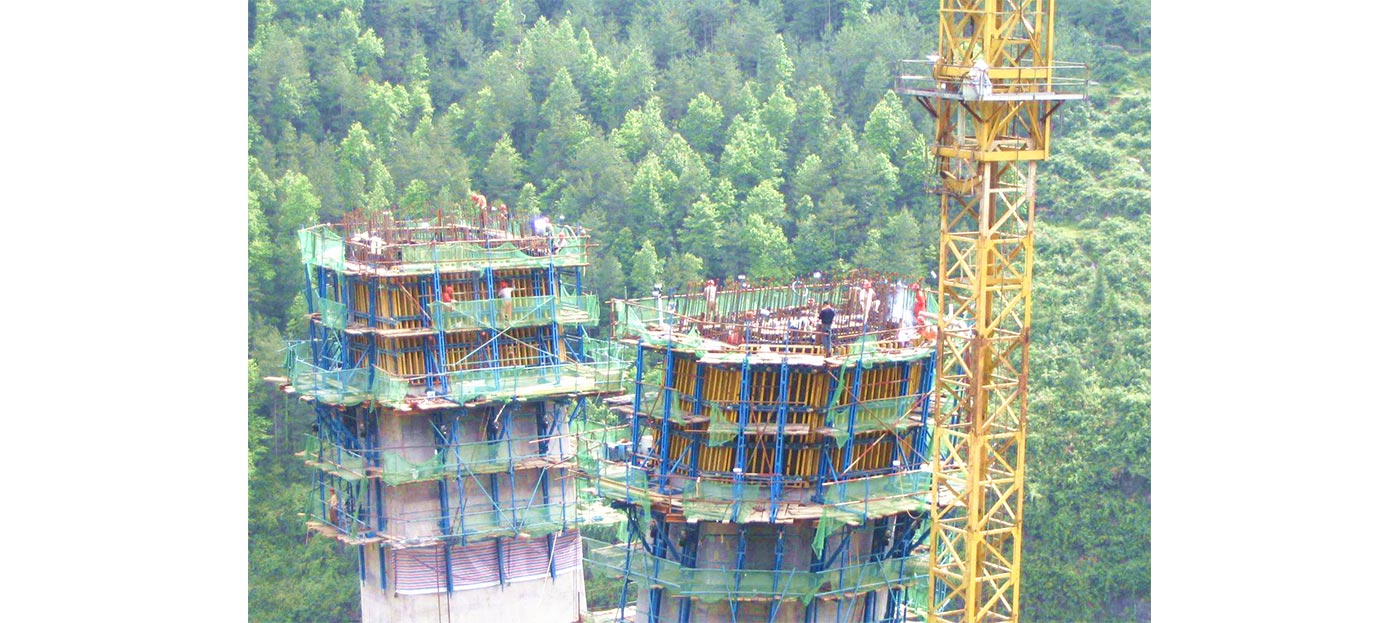

ZOLO Z-CLIMB™ ACF100 both can climb straight and diagonally, It is the first choice of high-rise building core wall and bridge pylon.
1、ZOLO Z-CLIMB™ ACF100 Self-Climbing Formwork System no need for tower crane repeatedly installed and dismantled, saving manpower, low labor intensity, high degree of mechanization.
2、High safety with multi-floor of operating platform..
3、The formwork panel and the climbing bracket work at the same time, the construction speed is fast to save the cost during the working period.
4、ZOLO Z-CLIMB™ ACF100 Self-Climbing Formwork System components has very high versatility with Zolo other climbing formwork system to help the clients saving more materials investments.
5、ZOLO Z-CLIMB™ ACF100 Self-Climbing Formwork System demolding operation adopts adjusting bracket and horizontal setback device, which is easy to operate and ensures smooth demolding work. ZOLO Z-CLIMB™ ACF100 Self-Climbing Formwork System panel face can be cleaned up in situ, which can save the formwork stacking site and storage cost
6、According to the premise of checking and calculating, it is possible to realize hanging ladder on the main bracket and docking with the construction elevator; carrying the concete placing boom and climbing at the same time.
7、Safe choice, Safe system
· Automatic climbing formwork ZOLO Z-CLIMB™ ACF100 is definitely the 'safe' system choice. Its wide, fully enclosed working platforms, the well thought-out access paths and the gapless enclosure all make for a high level of safety at your site. Up to 20 automatic climbers can be raised from one casting section to the next by a single hydraulic unit.
| Material | Q355 High Strengthen Structure Steel+Powder Coatiing or Galvanized |
| Single Bracket Body Weight | 2500KGS |
| Width of Main Platform | 2800mm Max. |
| Hydralic Station Flow | 60L/Min. |
| Hydraulic Jack Stroke/Working Pressure | 400mm/ 25Mpa |
| Rated Lifting Capacity | 125KN Min./280KN Max. |
| Climbing Speed | 0.1meters/Minutes |
| Pouring Height | 4.5-6Meters |
