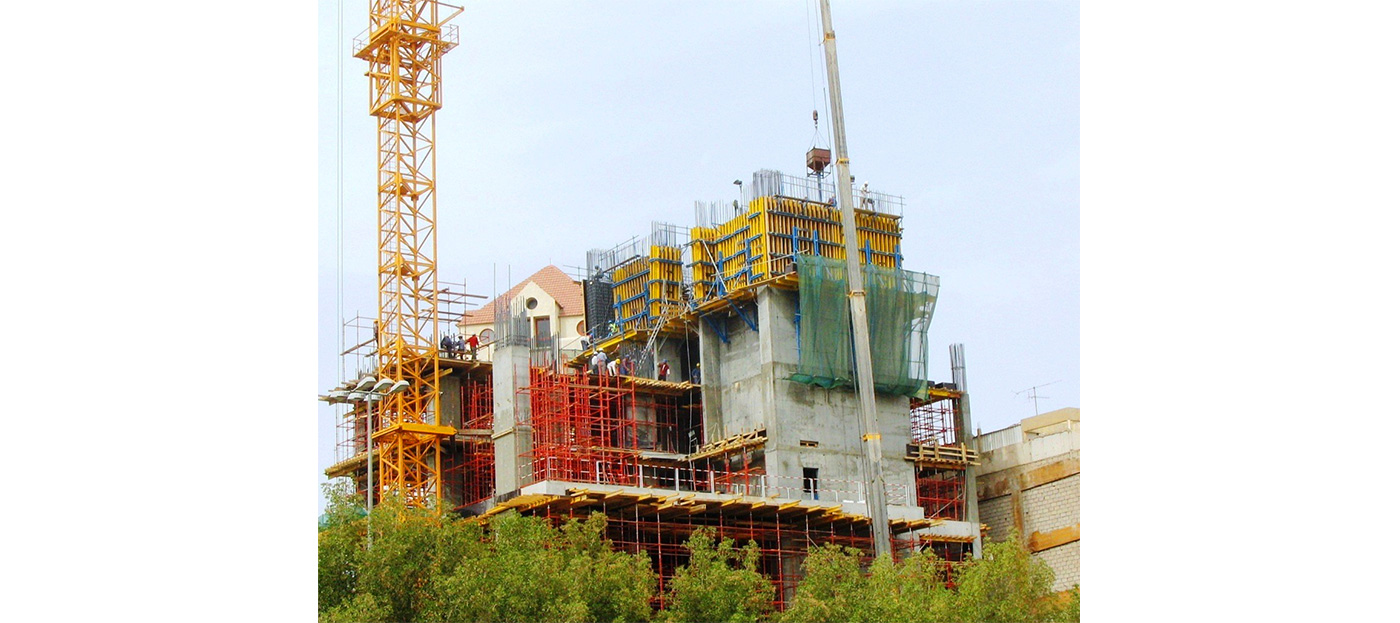

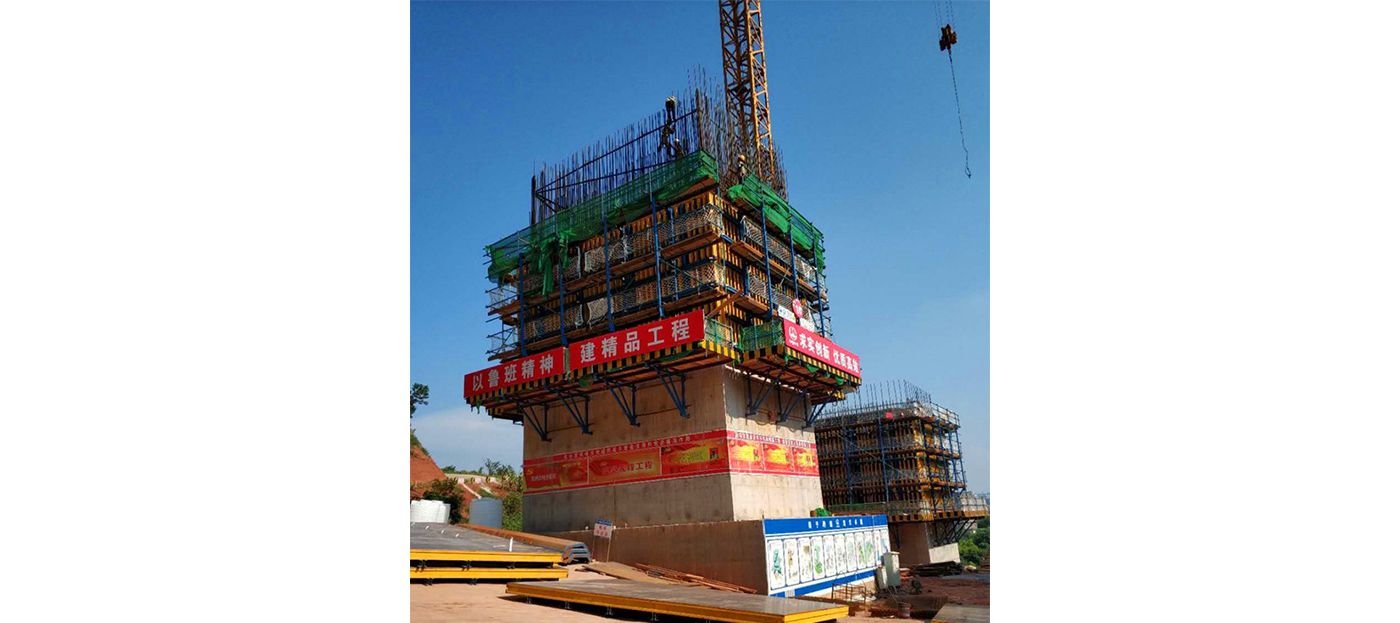

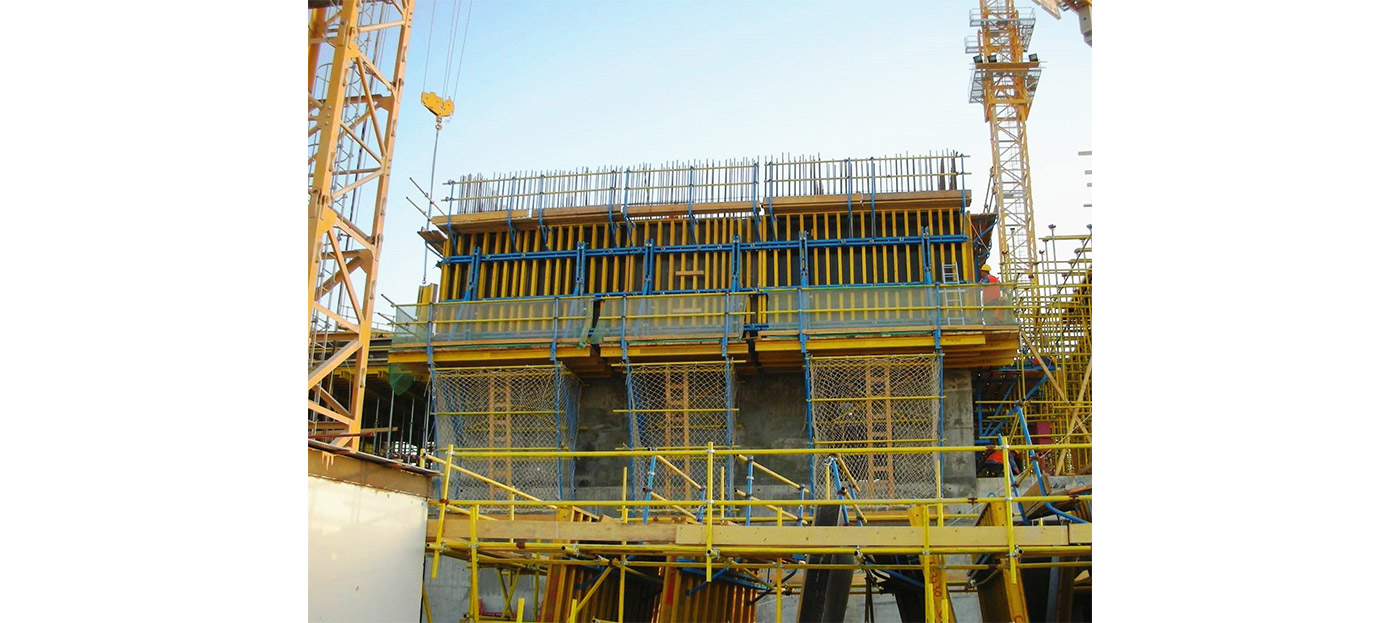

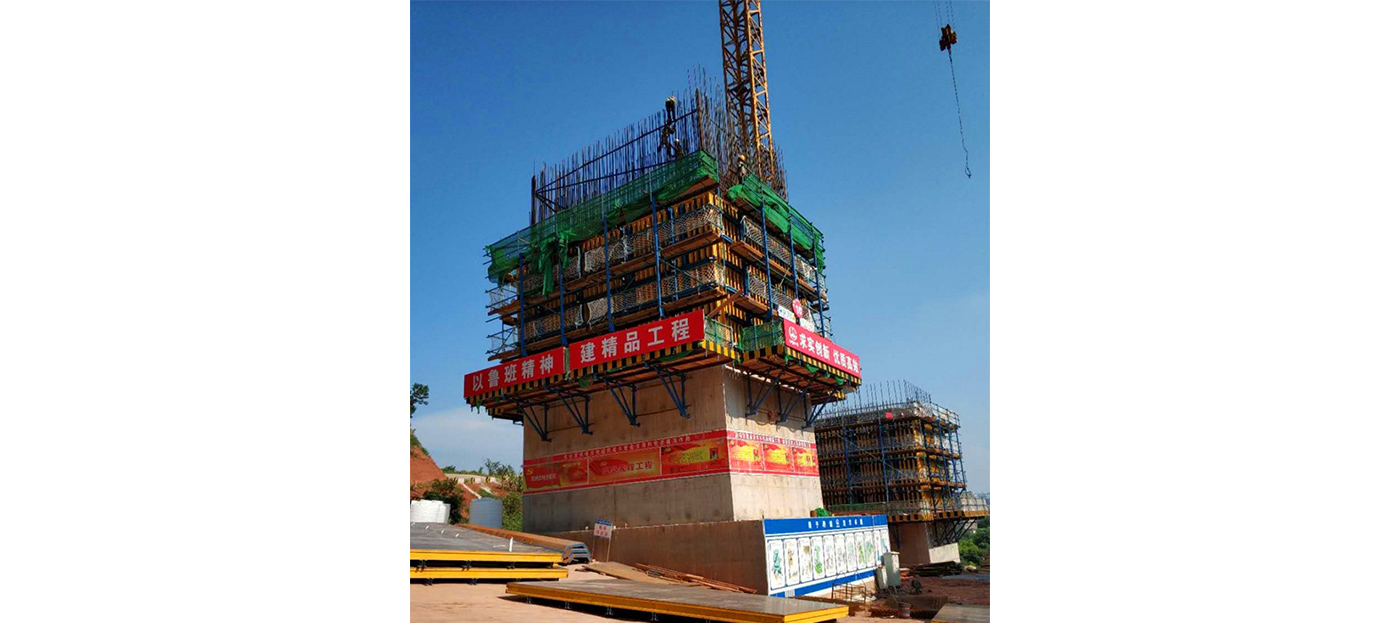

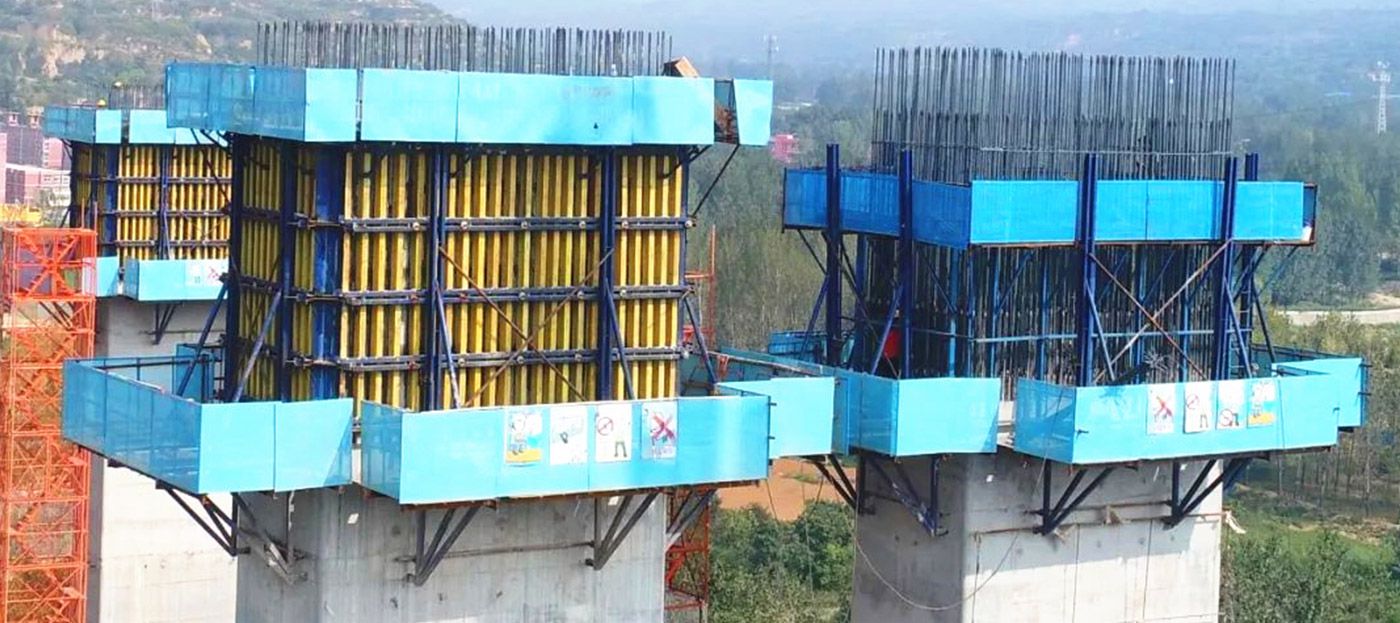

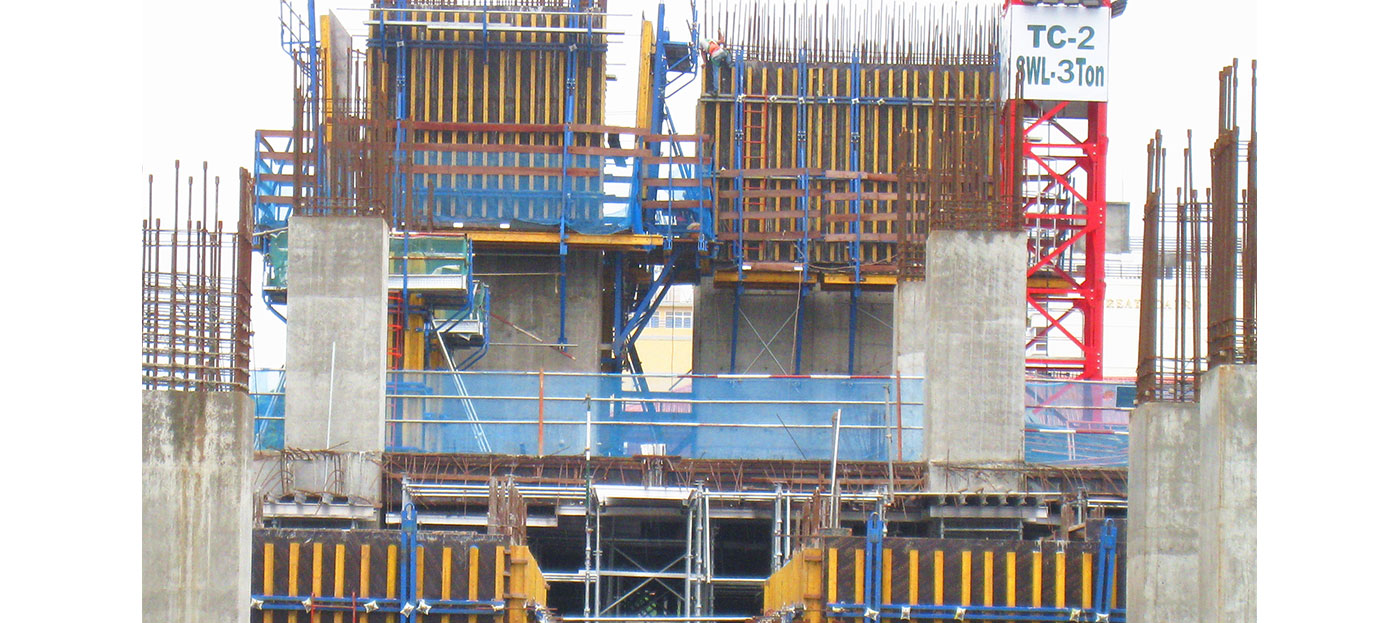

ZOLO Z-CLIMB™ CF210/240 climbing formwork system is one type of Crane-lifted climbing bracket with platform and large size wall formwork which can be moved rapidly by crane.

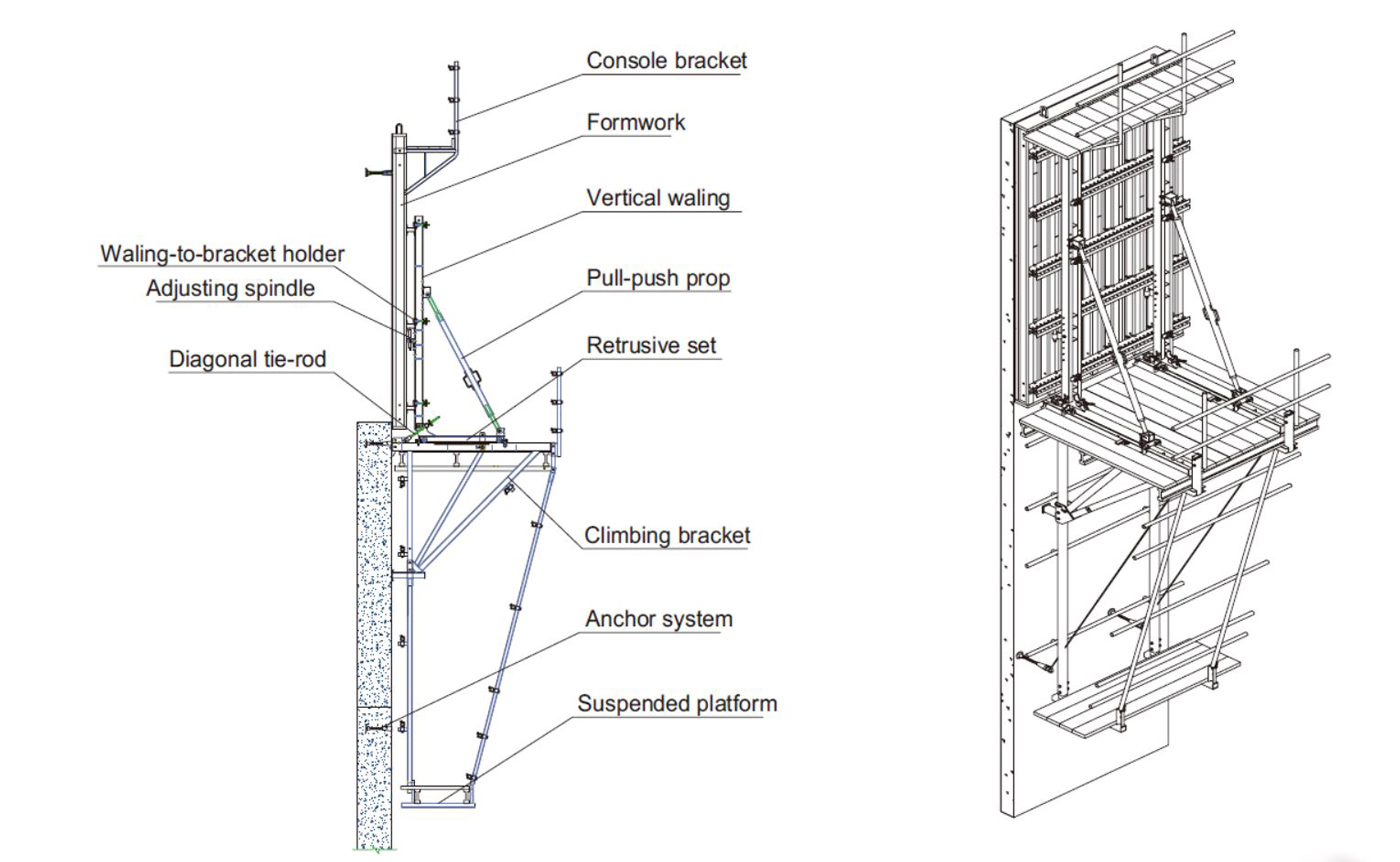

The climbing system consists of formwork panel, working platform, finishing platform, supporting brackets with formwork carriage and rollback mechanism.
ZOLO Z-CLIMB™ CF210/240 climbing formwork system is one type of Crane-lifted climbing bracket with platform and large size wall formwork which can be moved rapidly by crane.
The climbing system consists of formwork panel, working platform, finishing platform, supporting brackets with formwork carriage and rollback mechanism.
◆ High bearing capacityThe high loading capacity of the brackets allow very large scaffold units. This saves the number anchor points required as well as reducing climbing times.
◆ Simple moving procedure by craneThrough the strong connection of formwork together with the climbing scaffold, both can be moved as a single climbing unit by crane. Thus valuable time-savings can be achieved.
◆ Fast striking process without a craneWith the retrusive set, large formwork elements can also be retracted quickly and a minimum of effort.
◆ Safe with work platformThe platforms have assembled firmly with bracket and will be climbing together, without scaffolding but can work safely in spite of your high location.
| Material | Q355 High Strengthen Structure Steel+Powder Coatiing or Galvanized |
| Single Bracket Body Weight | 400KGS/450KGS |
| Width of Main Platform | 2000mm/2400mm. |
| Formwork Rollback Distance | 600mm |
| Concrete Pressure | 70Mpa |
| Rated Lifting Capacity | 125KN Min./280KN Max. |
| Inclination | ±18° |
| Pouring Height | ≤4.5Meters |
