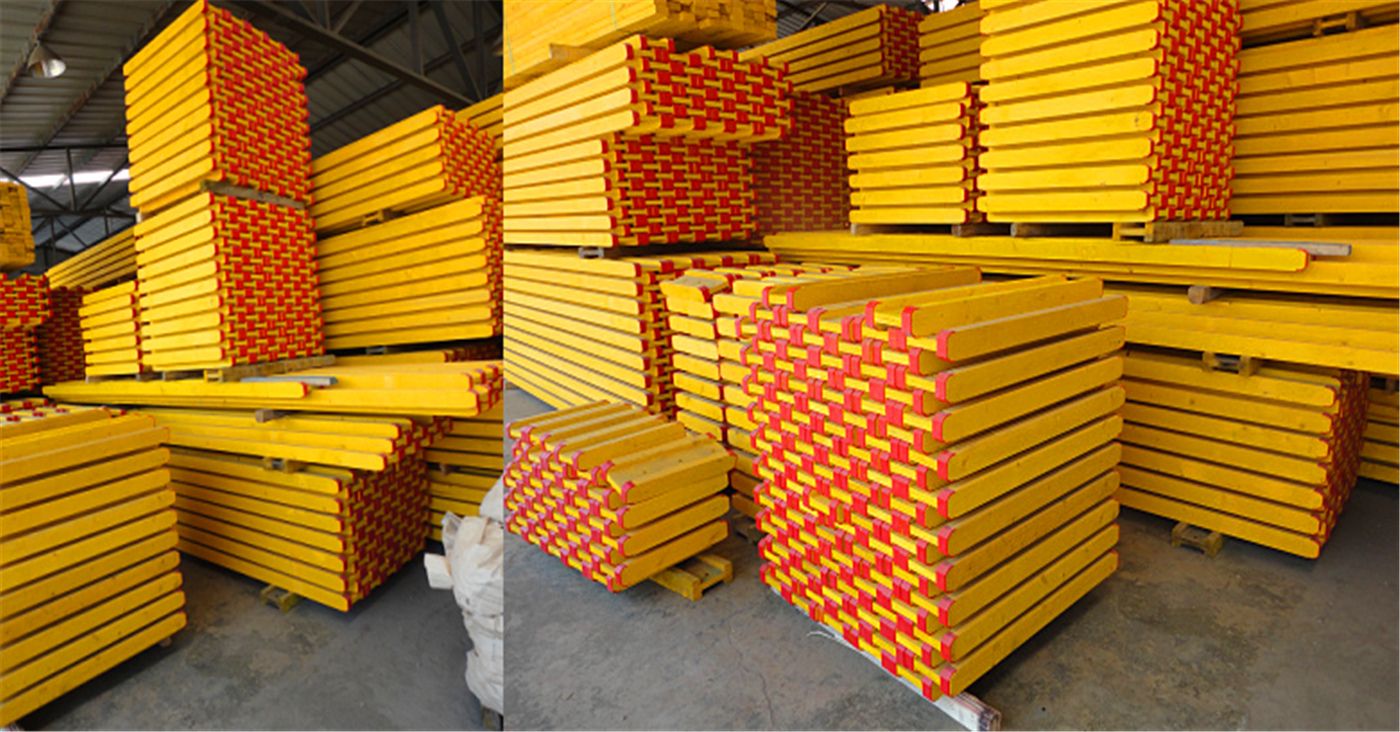

ZFlex™20 Timber H Beam

Zolo ZFlex™20 Timber H Beam can be used for 4 to 5 years. (the exact using time would depend on maintenance & storage)

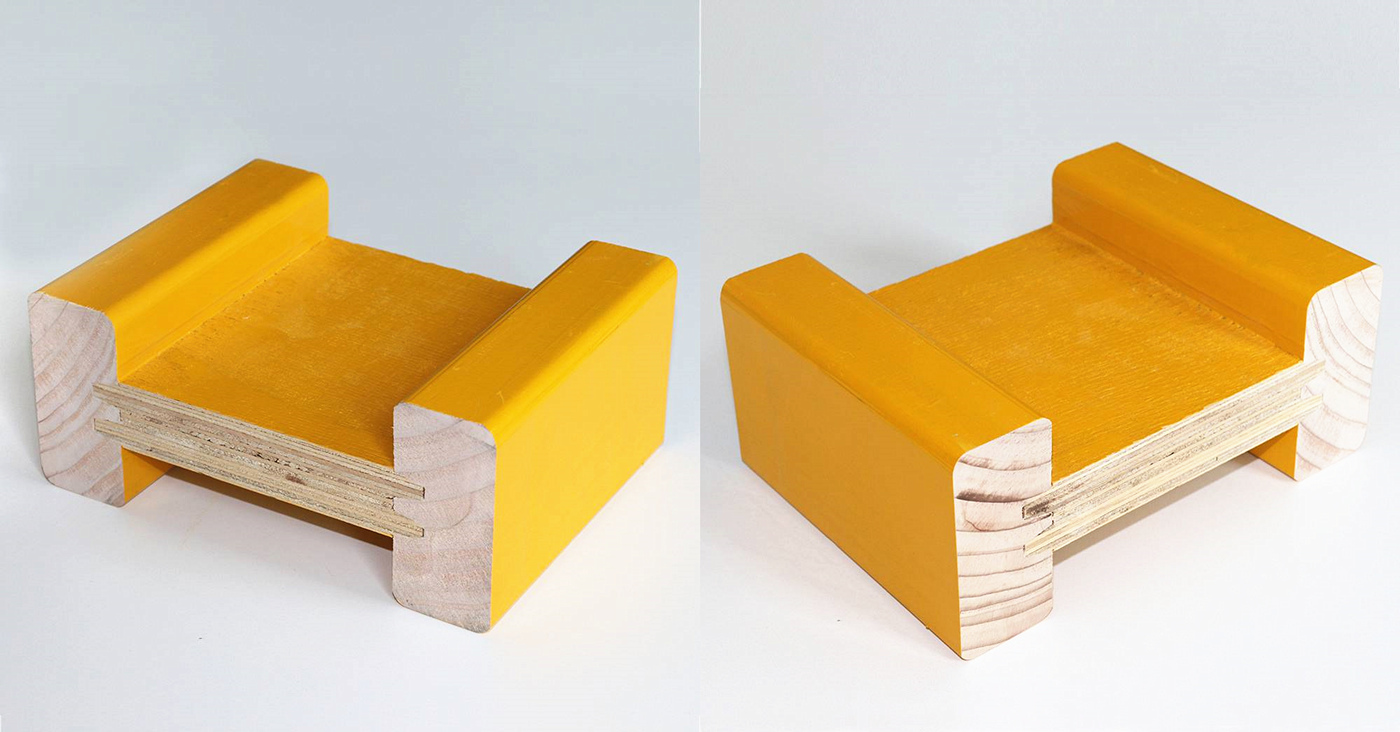

Zolo ZFlex™20 Timber H Beam apply finger jointing of the flange and web, the strength of timber beam is highly improved.

Max. shearing force failure load can reach to 40KN.

Well treated timber face to prevent from water penetration or erosion, so the service life maximally extended. .

The Robust caps at the end of the girders protect against damages.

立即咨询

Overview

Zolo ZFlex™20 Timber H Beam can be used for 4 to 5 years. (the exact using time would depend on maintenance & storage)

Zolo ZFlex™20 Timber H Beam apply finger jointing of the flange and web, the strength of timber beam is highly improved.

Max. shearing force failure load can reach to 40KN.

Well treated timber face to prevent from water penetration or erosion, so the service life maximally extended. .

The Robust caps at the end of the girders protect against damages.mally,

Specifications

Dimensions	ZFlex™20 H Beam	Tolerence
Beam Height(mm)	200	+/-2mm
Wing Thickness(mm)	40	-1.5%
Wing Width(mm)	80	-1.5%
Belly Thickness	29	+/-0.5mm
Length can be customized L=6000mm Max.

Features

Wing：	As per DIN4074 standard,choose premium S10 class spruce or monterey pine
Belly：	Selected 3 layers of solid wood
Wood Spec:	Spruce or Monterey Pine
Glue Joint：	As per B3023 standard, use BFU100(AW100)glue high strength water proof weath proof glue
Moisture：	11%
Weight：	4.85kg/m
Face Treat：	water proof painting

Quality Standard	EURO COMMITEE EN13377• DIN EN13377:2002-11
Certify Institute	ZAG Laibach,National Building and Civil Engineering Institute,EEC Nr.89/106
Packing Option	Standard Pallet,Container,Bundle
